Accelerate material development by manufacturing test tension parts in-house in accordance with DIN EN ISO 527-2-1A.
Whether you are working with compounded, recycled or virgin material, our solution enables you to manufacture test specimens in accordance with DIN EN ISO 527-2-1A faster than ever before in order to obtain information about the properties of your material.
Cavities per mould: 2
Plastic per single Test Tension Part (PP): 8.6 g
Size single Test Tension Part: L: 170 mm, W1: 20 mm, W2: 10 mm, H: 4 mm
Plastic (PP) per mould: 20.9 g
INHOUSE MATERIAL TESTING
the quickest approach to evaluate your materials properties
RELIABLE RESULTS
proofen reliable relults with a wide range of different materials
LONG LASTING

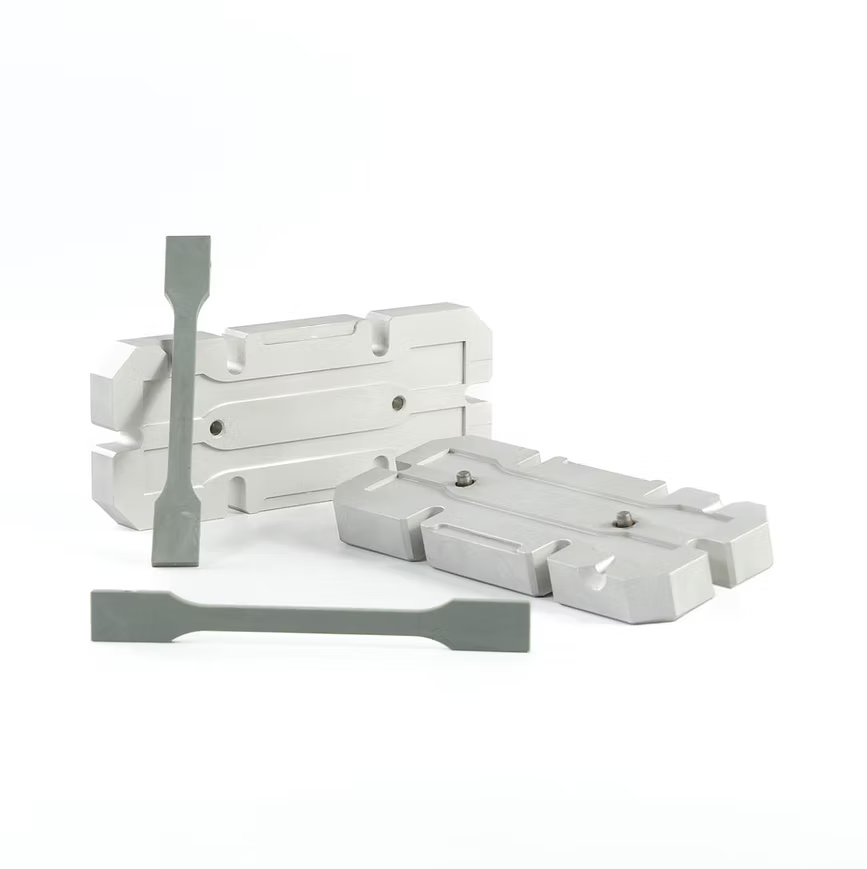

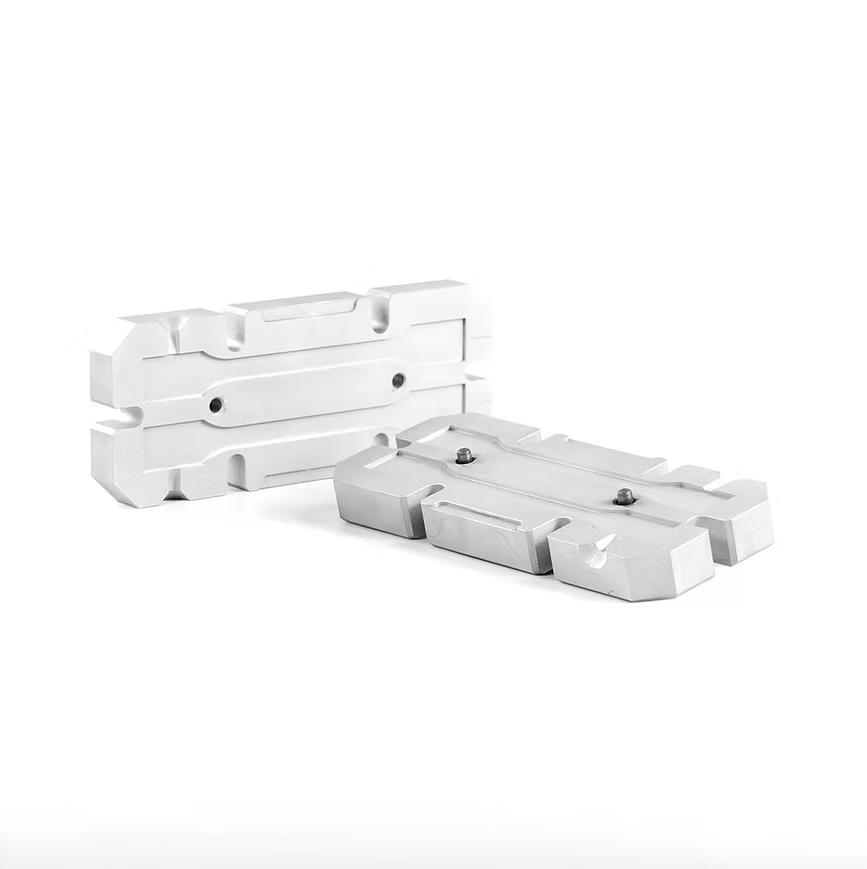

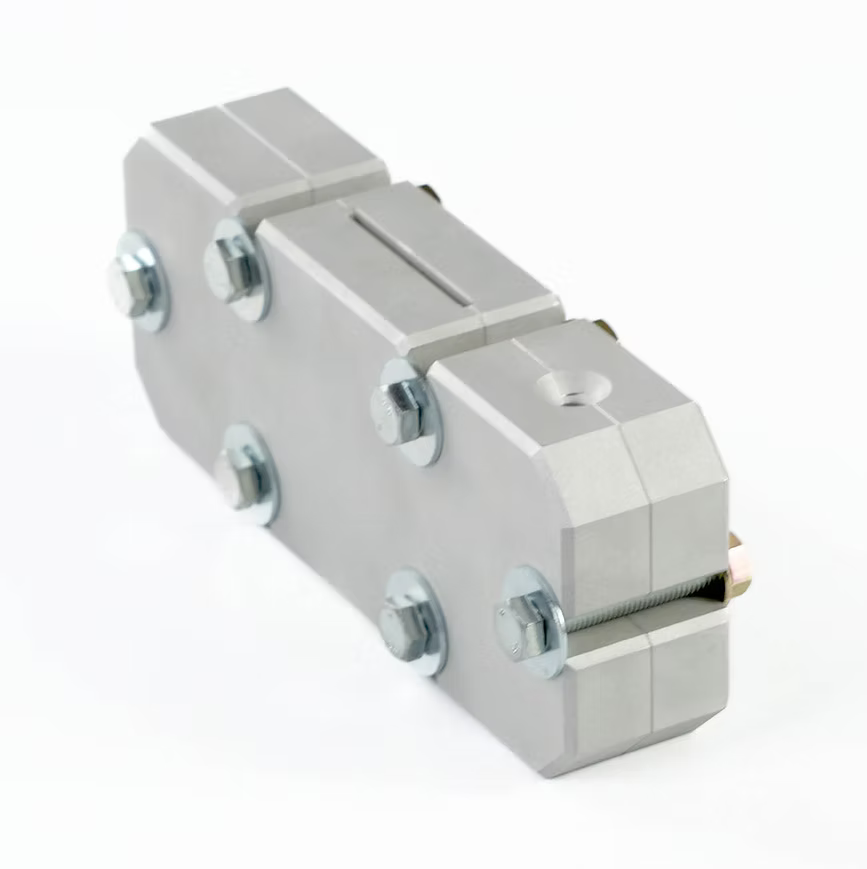

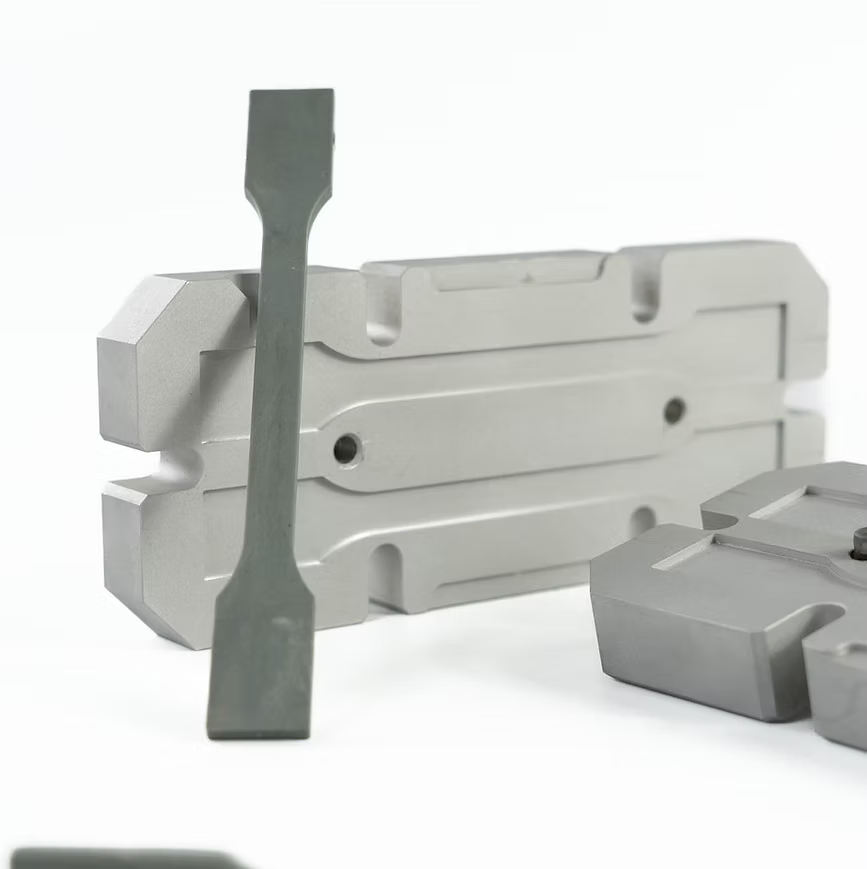

high quality aluminium mould with clean surface finish and geometric precision
SPECIFICATIONS
| CAVITIES |
| SIZE MOULD XS |
| WEIGHT MOULD XS |
| MATERIAL XS |
| CAVITIES | 2 |
| SIZE MOULD | 85 X 235 X 40 MM |
| WEIGHT MOULD | 2 KG |
| MATERIAL | 7075 ALUMINIUM |

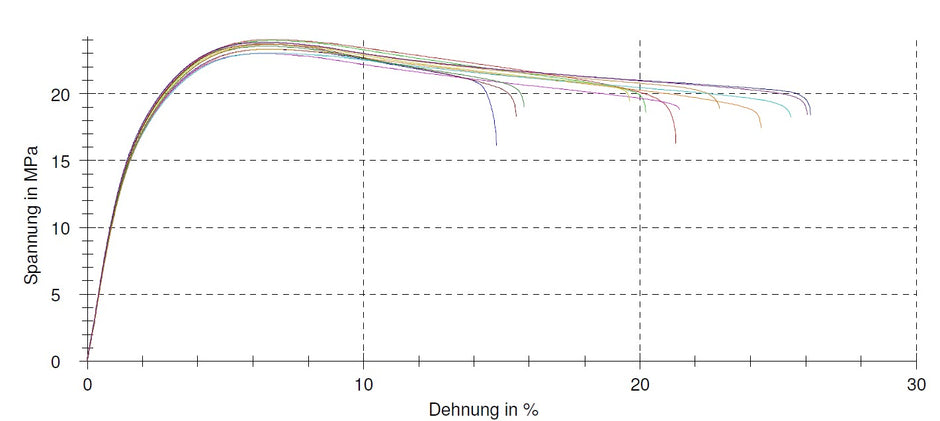

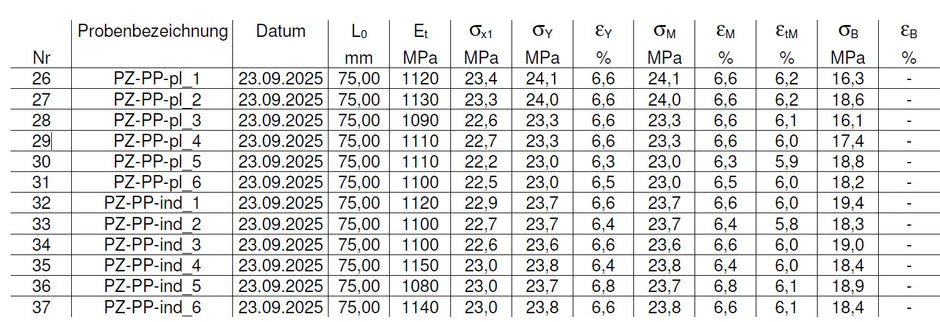

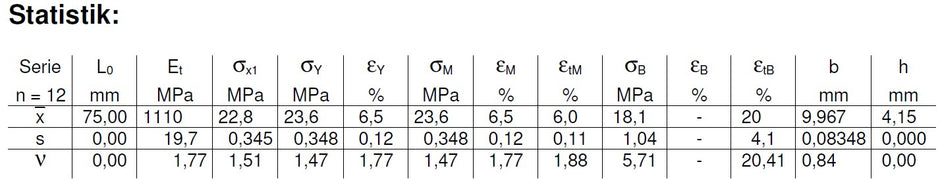

Industrial laboratory test results
A comparison of industrially and manually manufactured test tension parts using a Polyverse Solution Injection Molding Machine according to DIN EN ISO 527-1.
Add description text to provide more info to your customers.
Add description text to provide more info to your customers.
Add description text to provide more info to your customers.
PRE-ORDER NOW!
Contact our Customer Success Team
- sales@polyverse.solutions
-
+43 676 4538214
-
Monday — Friday, 9am — 5pm ET
Need Help?
Here we answer the most common questions about the Roadster. If you can't find the answer to your question, please email us.
How long does a mould last?
How long does a mould last?
As long as the cavity of the mould is not damaged, moulds will last for several years without any problems.
It is recommended to use several moulds of the same type.
It is recommended to use several moulds of the same type.
Yes, definitely. Especially if you have batch production and do not need the entire injection volume for one mould.
Do you also manufacture custom moulds as a service?
Do you also manufacture custom moulds as a service?
Absolutely. To do so, please go to the ‘Services’ tab.
